How to Install Your New Signs
|
Click here to see our sign installation video
or
click here to download all these instructions as a PDF.
|
1. Verify the wall surface is smooth and free of any dirt or dust. Complete any wall treatments, such as wallpapering or painting, prior to sign installation.
|
|
2. Determine the mounting height for your signs. The ADA requires that the center of wall mounted signs be 60" above the finished floor.
|
|
3. For wall signs located near a door, the ADA requires signs to be mounted on the latch side of the door 2"- 3" from the door jamb, or to the right side of double doors. If this space is not available, signs should be located on the
nearest adjacent wall.
|
|
|
4. There are three mounting methods:
|
Adhesive Tape
Remove the adhesive tape backing. Using a level to insure the sign is straight, press the sign firmly to the wall.
|
Silicone Sealant
|
For heavy signs, exterior signs, or when applying to textured wall surfaces, it is recommended to use a silicone construction sealant in addition to the adhesive tape on the
back of the sign. Apply silicone sealant as illustrated and remove the adhesive tape backing. Using a level to insure the sign is straight, press the sign firmly to the wall.
|
|
Screw Mounting
Using a level to insure the sign is straight, mark the wall through the screw holes. Drill holes and insert anchors. Holding sign in place, fasten screws into wall anchors.
For signs with frames and screw holes, first remove the sign face. Next, position the frame on the wall, and follow the above instructions. Replace the sign face.
|
|
|
|

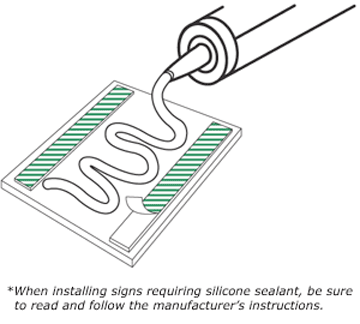

Follow these easy steps for silicone sealant installation*
1. Apply an even bead of silicone sealant covering all untaped areas.
2. Remove adhesive backing and apply sign to wall.
|
Note: Some wall surfaces (such as textured walls, vinyl wallcoverings and like surfaces) may not be suitable for adhesive tape installation. A thin bead of silicone sealant may be necessary.
* When installing signs requiring silicone sealant, be sure to read and follow the manufacturer's instructions regarding use of silicone/adhesive.
|
|
1. Verify the wall or ceiling surface is smooth and free of any dirt or dust. Complete any wall or ceiling treatments, such as wallpapering or painting, prior to sign installation.
|
|
2. Determine the mounting height for your signs. The ADA requires signs that project from the wall (perpendicular signs) or ceiling (overheads) to have a clearance of 84" from the finished floor to the bottom of the sign.
Signs should not interfere with or block the function of any doors, emergency equipment, or sprinklers.
|
|
|
3. Using a level to insure the sign is straight, mount the sign to the wall or ceiling with the supplied bracket and hardware. Depending on the wall or ceiling type, you may need to insert anchors prior to fastening hardware.
|
|
Signs With Frames
|
|
Mounting Height Guide
|
For signs with frames and screw holes, there are two options for mounting: adhesive or screws.
Note: Not all frame systems have the screw hole option; in that case, refer to step 5 of the appropriate instructions.
For screw mounting, first remove the sign face. Next, position the frame on the wall following the guidelines in steps 2 and 3 of the appropriate instructions.
Use screws to attach the frame to the wall. Depending on the wall type, you may need to use wall anchors. Replace the sign face.
|
|
Here's a simple formula to determine the mounting height for wall signs:
- Divide the Sign Height by 2
- Subtract the result from 60
- The result is the number of inches the bottom of the sign should be placed from the finished floor
Example:
- Sign height is 5.50"
- 5.50" ÷ 2 = 2.75"
- 60" - 2.75" = 57.25"
The bottom of the sign should be positioned 57.25" from the finished floor.
|
|
|
|
|
